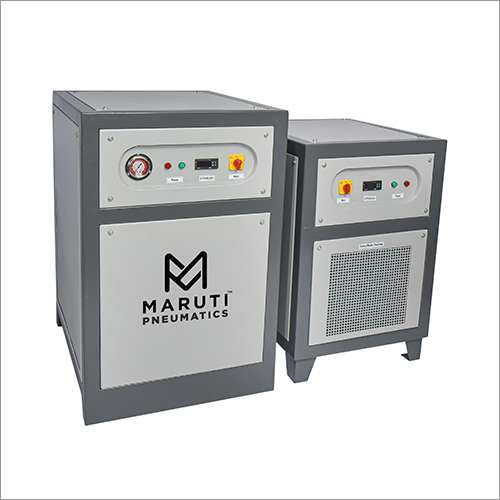

Refrigerated Air Dryer
Product Details:
- Power Mode AC
- Size Customized
- Usage Industrial
- Product Type Refrigerated Air Dryer
- Place of Origin India
- Power Source Electric
- Voltage 230-415 Volt (v)
Refrigerated Air Dryer Price And Quantity
- 01 Piece
- 25000.00 INR/Piece
Refrigerated Air Dryer Product Specifications
- Customized
- Industrial
- Electric
- Refrigerated Air Dryer
- India
- 230-415 Volt (v)
- 01 year
- AC
Refrigerated Air Dryer Trade Information
- Cash in Advance (CID)
- 10 Piece Per Day
- 4-5 Days
- All India
Product Description
The offered Refrigerated Air Dryer is a type of compressed air dryer, used to dry compressed air. Compressed air always contains water, coming from the air that is sucked in by the compressor. To protect your piping, tools and equipment, its best to use a compressed air dryer to dry the air. The offered dryer is made for use in the various commercial places as per the need. It is highly demanded in industries for efficient use. The Refrigerated Air Dryer is very durable.
Specification
Model | Inlet Flow Capacity | Max. working Pressure | Power Supply
| Nominal Power Consumption | Air Connection Size (In/Out) | Cooling Media |
| Scfm | Bar | V / Ph / Hz | KW |
| Air |
RP 02 | 20 | 16 | 230/1/50 | 0.15 | BSP-F | Air |
RP 04 | 40 | 16 | 230/1/50 | 0.20 | BSP-F | Air |
RP 06 | 60 | 16 | 230/1/50 | 0.39 | BSP-F | Air |
RP 08 | 80 | 16 | 230/1/50 | 0.40 | 1 BSP-F | Air |
RP 10 | 100 | 16 | 230/1/50 | 0.50 | 1 BSP-F | Air |
RP 12 | 125 | 16 | 230/1/50 | 0.65 | 1 BSP-F | Air |
RP 15 | 150 | 16 | 230/1/50 | 0.70 | 1 BSP-F | Air |
RP 20 | 200 | 16 | 230/1/50 | 0.80 | 1 BSP-F | Air |
RP 25 | 250 | 16 | 230/1/50 | 0.90 | 1 BSP-F | Air |
RP 30 | 300 | 16 | 450/3/50 | 1.00 | 1 BSP-F | Air |
RP 40 | 400 | 16 | 450/3/50 | 1.40 | 2 BSP-F | Air |
RP 50 | 500 | 16 | 450/3/50 | 1.50 | 2 BSP-F | Air |
RP 60 | 600 | 14 | 450/3/50 | 2.05 | DN80-PN16 | Air |
RP 70 | 700 | 14 | 450/3/50 | 2.20 | DN80-PN16 | Air |
RP 80 | 800 | 14 | 450/3/50 | 2.80 | DN80-PN16 | Air |
RP 100 | 1000 | 14 | 450/3/50 | 3.00 | DN80-PN16 | Air |
RP 125 | 1250 | 14 | 450/3/50 | 4.20 | DN80-PN16 | Air |
RP 150 | 1500 | 14 | 450/3/50 | 4.50 | DN100-PN16 | Air |
RP 175 | 1750 | 14 | 450/3/50 | 5.20 | DN100-PN16 | Air |
RP 200 | 2000 | 14 | 450/3/50 | 5.70 | DN100-PN16 | Air |
RP 300 | 3000 | 14 | 450/3/50 | 6.60 | DN100-PN16 | Air |
Product details
| Rated Power | 0.20 kW |
| Maximum Pressure | 16 barg |
| Brand | Maruti Pneumatics |
| Dryer Horse Power | 0.5 HP |
| Frequency | 50 Hz |
| Air Inlet Temperature | 55 Degree Celsius |
| Phase | 1 phase |
| Operating Voltage | 230 V AC |
| Warranty | 12 months |
| Connection Air In Out | 1/2 '' BSP |
| Cooling Method | Air Cooled |
| Model Name/Number | MPRD-04 |
| Dryer Technology | Refrigerated |
| Drying Capacity | 40 CFM |
